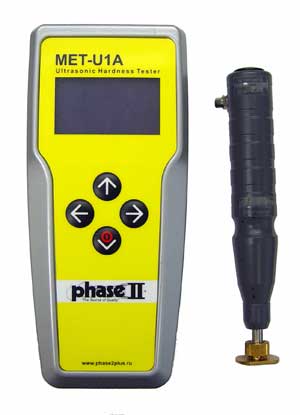

MET-U/MET-UD 超声波便携式硬度测试仪
|
| Ultrasonic Portable Hardness Tester |
| |
|
|
The PHASE II ultrasonic/dynamic portable hardness testers are capable of measuring the surface hardness of a broad variety of metals on flat, round, thin or large surfaces. Unlike the standard Dynamic hardness testers, these "state-of-the-art" portable hardness testers incorporate "Ultrasonic UCI" technology, which enables the hardness testing of very thin and small workpieces, which otherwise could not be tested accurately using a portable device. Non-destructive in it's function, these hardness testers allow for the testing of highly sensitive or finished parts that previously could not be tested in an operational setting. The non-destructive (ndt) feature of these hardness testers allow the operator to accurately test parts without causing physical or structural damage that would normally lead to disposal or refinish of operators part.
The Phase II MET series of portable hardness testers offers a model that include a dynamic probe for easy, quick hardness testing of parts with a mass greater than 5kg |
|
| | |
 |
UCI Hardness Testing Method:
MET-U1A and MET-UD
A hardness testing method based on the measurement of the frequency shift of a resonating rod caused by the essentially elastic nature of the finite area of contact between the indenter and the test piece during the penetration. Described as a hardness testing practice using a calibrated instrument by pressing a resonating rod with a Vickers style Diamond indentor with a fixed force against the surface of the part to be tested. |
LEEB Hardness Testing Method:
MET-UDA only
This is a dynamic hardness test method using a calibrated instrument that impacts a spherically shaped carbide ball with a fixed velocity (generated by a spring force) onto a surface of the material under test. The ratio of the rebound velocity to the impact velocity of the impact body is a measure of the hardness of the material under test. |
Functions:
Easy To Read Menu Operation
Large LCD Display w/ Back Light
USB Interface
Automatic Conversions to: Brinell, Rockwell C, Rockwell B, Vickers and Leeb
Automatic Mean ＆#118alue
Data Archive Capacity
Standard Accessories:
Base Instrument
10N (1kgf) Hand-Held Probe - U1A & UDA models
Dynamic "D" Leeb Impact Device - UD model only
Calibrated Test Blocks:
Model MET-U1A 2pc HRC Test Blocks
Model MET-UDA 2pc HRC Test Blocks 1pc Leeb Test Block
USB Ouput Cable
Custom Carry Case
Battery Charger
Operation Manual
Model No.
Data |
MET-U1A
(w/Ultrasonic Device) |
MET-UDA
(w/Dynamic Impact Device) |
| Probe Type |
UCI 10N
Utilizes Vickers style Diamond
Indentor |
Dynamic Leeb "D"
Utilizes a 3mm Carbide Ball |
| Tolerance |
+/- 3.0% of average from the reference ＆#118alue of the test block with a minimum of 5 tests |
+/-6 L (L=Leeb) |
| Measuring Range: |
HRC: 20-67
HRB: 30-99
HB: 75-650
HV: 75-1000 |
HRC: 20-67
HRB: 13-99
HB: 75-650
HV: 80-980
LD: 200-900 |
| Applicable Test Materials |
Steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy. |
Steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum. |
| Minimum Thickness |
.040" (Steel) |
Approx. 0.472" (Steel) |
| Battery Type |
NiMH (C) |
NiMH (C) |
| Operating Temperature |
5-104 ° F |
5-104 ° F |
| Dimensions (Gauge only) |
145 x 80 x 40mm |
145 x 80 x 40mm |
| Weight (Gauge only): |
8.5oz |
8.5oz |
Technical Data for UCI Probe and Dynamic Indentor:
| Test Device |
UCI |
Dynamic |
| Length: |
160mm |
140mm |
| Diameter |
25mm |
25mm |
| Indentation Depth |
30μm |
300 μm |
| Pressure Force |
14.7N |
11Nm |
Transducer Test Life
(Approx) |
200,000 |
50,000 |
Min Thickness for Testing
(Steel) |
1mm |
12mm |
| Min. Radius for Test |
5mm |
10mm |
| Max. Surface Roughness |
Ra 2.5 μm |
Ra 3.2 μm |
| Memory |
100 Tests |
100 Tests |
| Time of Test |
2 seconds (2010 model) |
2 Seconds | |
| |
 |
|
