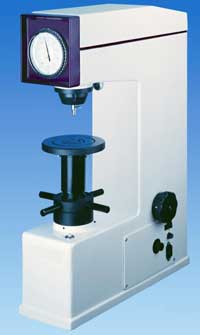

900-340 表面洛氏硬度测试仪
|
| ROCKWELL SUPERFICIAL HARDNESS TESTER |
| |
|
Model No. 900-340
Just like our Phase II analog Rockwell Hardness Tester, the 900-340 Superficial Rockwell Hardness Tester comprises "state of the art" design and dynamic precision only found at Phase II. Used for testing thin and soft material in the Superficial Rockwell Hardness scales, this hardness tester utilizes a motor driven system for control of the major test force application. The 900-340 is ruggedly engineered to obtain highly sensitive and accurate readings. Conforming to ASTM E-18 Superficial Rockwell Hardness standards, this hardness tester will will offer unmatched repeatability in all Superficial Rockwell Hardness scales (table shown below). A perfect performer suited for any environment including heat treat facilities, tool rooms, workshops, laboratories and inspection labs. Lifetime technical support is included with all Phase II Hardness Testers. So test away with confidence and a level of accuracy you will only find at Phase II.
Features:
- Motor driven system provides control of test force application
- Direct analog dial reading
- Engineered to obtain highly sensitive and accurate readings
- Conforms to ASTM E-18
- Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
- For testing thin, soft material in the Superficial Rockwell scales (900-340)
|
Specifications:
| Minor Load |
10 Kgf |
| Major Load |
15 Kgf, 30 Kgf, 45 Kgf |
| Test Force Application |
Dead Weight |
| Test Force Control |
Motorized |
| Results Display |
Analog Dial Gage |
| Vertical Capacity |
6.7 in. |
| Throat Depth |
6.6 in. |
| Height |
28 in. |
| Width |
8.9 in. |
| Depth |
19.6 in. |
| Shipping Weight |
190 lbs |
Accessories:
- N-scale Diamond Indentor
- 1/16" Steel Ball Indentor
- 3- HRN Test Blocks
- 3-HRT Test Blocks
- Test Table 5.87" (150mm)
- Flat Anvil 2.5" (63mm)
- Spot Anvil .38" (10mm)
- Std. Vee Anvil
- Accessory Case
- Dust Cover
|
|
| | |
 |
| Scale Symbol |
Indenter Type
Ball dimensions indicate diameter |
Preliminary Force
N (kgf) |
Total Force
N (kgf) |
Typical Application |
| 15N |
Spheroconical Diamond |
29.42 (3) |
147.1 (15) |
Similar to A,C and D scales, but for thinner gage material or case depth |
| 30N |
Spheroconical Diamond |
29.42 (3) |
294.2(30) |
| 45N |
Spheroconical Diamond |
29.42 (3) |
441.3(45) |
| 15T |
Ball - 1/16" (1.588mm) |
29.42 (3) |
147.1 (15) |
Similar to B,F and G scales but for thinner gage materials |
| 30T |
Ball - 1/16" (1.588mm) |
29.42 (3) |
294.2(30) |
| 45T |
Ball - 1/16" (1.588mm) |
29.42 (3) |
441.3(45) |
| 15W |
Ball - 1/8" (3.175mm) |
29.42 (3) |
147.1 (15) |
Very soft material |
| 30W |
Ball - 1/8" (3.175mm) |
29.42 (3) |
294.2(30) |
| 45W |
Ball - 1/8" (3.175mm) |
29.42 (3) |
441.3(45) |
| 15X |
Ball - 1/4" (6.350mm) |
29.42 (3) |
147.1 (15) |
| 30X |
Ball - 1/4" (6.350mm) |
29.42 (3) |
294.2(30) |
| 45X |
Ball - 1/4" (6.350mm) |
29.42 (3) |
441.3(45) |
| 15Y |
Ball - 1/2"(12.70mm) |
29.42 (3) |
147.1 (15) |
| 30Y |
Ball - 1/2"(12.70mm) |
29.42 (3) |
294.2(30) |
| 45Y |
Ball - 1/2"(12.70mm) |
29.42 (3) |
441.3(45) |
| |
 |
|
